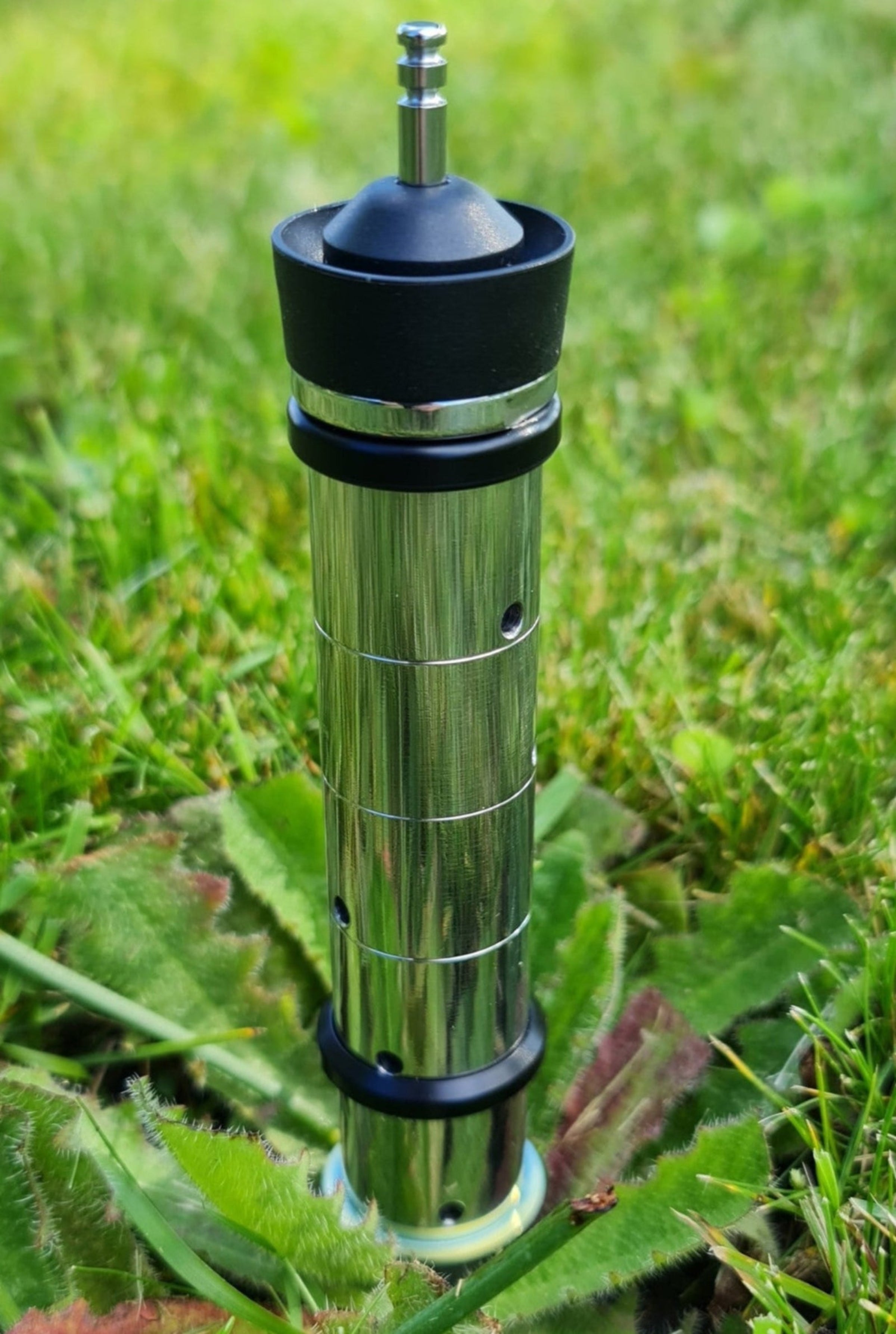

Scorpion Piston - TAC41 + Spring Guide

Which rifle is this kit for? This listing is the Scorpion piston and spring guide kit for the Silverback TAC-41. Do not assume direct compatibility with SRS or other platforms.

Is the spring guide included? Yes. The listed kit includes a Stalker stainless steel spring guide.

Do the included air brakes fit a Kraken setup? The included 3.80mm brakes are designed for the stock TAC-41 cylinder head. The existing guidance specifies separately purchased thicker brakes for GBB or TAC-41 Kraken configurations.

Can I adjust the piston weight? Yes. The kit lists five aluminum body weights, four steel body weights and two piston-head materials for configuration changes.

Will short stroking affect power? Short stroking can shorten bolt pull but may reduce joule output. Chronograph after changes rather than assuming a fixed result.

Does the kit guarantee a silent rifle or a specific joule output? No fixed result is established. Sound and output depend on the complete setup and tuning.

• Weight adjustable modular piston (from ~65 to 148 grams)
• Silences your TAC41
• Increases joule/fps consistency
• Adjustable Air Brakes for optimal fine-tuning
• Option to short stroke your TAC41 for quicker reloads and shorter pull.

The piston has 2 adjustable air brakes included for optimal fine-tuning depending on your setup.

• 1x 3.80mm Short Air Brake (Optimal for 2J and 3J~ Builds or higher).
• 1x 3.80mm Long Air Brake (Optimal for 2J~ Builds or lower).

The included air brakes are designed to work with the stock TAC41 cylinder head, if you are using the GBB or TAC41 Kraken hopup unit you need to purchase these thicker airbrakes.

Included is a high joule cup (shiny) for higher joule outputs and lighter bolt pull.
Please use oil lubricant for perfect results, we recommend motor oil silicon oil or similar. For reference, a Rapax Lightpull Blue 2J+ spring is giving 2.2-2.3~ joule in an TAC41 with Stock TAC41 cylinder and a 420mm inner barrel. The stock cylinder will give fewer joules. Results may vary depending on the cylinder being used.

Golden Rules of installation

• Always put a drop of oil or silicon grease on your cup edge to achieve optimal joules.
• For 2.3j setups we recommend starting with the short air brake and unscrewing it completely.

• For 2.8+ setups we recommend starting with the short air brake and screw it in completely.
• Always set your hopup correctly on desired BB Weight and adjust to shoot straight.
• Higher the Joule = Shorter the Air brake
• Lower the Joule = Longer the Air brake.
• Choose your Air brake and start low, then higher (Unscrew) it each time until the setup is silent.
• When you start to lose joules then you know you are just over the perfect position of the air brake you have to screw the brake back in a bit, gain joules back, and have the most silent setup.

Good setups need adjustable air brakes because too many parts in your rifle can change the acceleration speed of the piston. BB Weight, Spring Power,  Bucking Hardness, Barrel Length, Weight of the piston etc. We also recommend buying some spring guide spacers to play with the weight of the piston and joules of the spring.

Included in this kit :

• 1x Stalker stainless steel spring guide (With Engraved Stalker Logo)
• 1x High Joule Piston Cup (shiny)
• 1x Aluminum piston head
• 1x Stainless steel piston head
• 5x Aluminum weights
• 4x Stainless steel weights
• Sear end cap made of stainless steel (rainbow colored)
• 2 Adjustable Air Brakes (Long & Short)
• 1x Nut to lock the Air Brake setting
• 10- O rings for in between the weights or cylinder head to stop the weights from loosening by playing.
• Front and Back guide rings made of POM

Brand: Stalker Airsoft Designs. Product: modular piston and spring guide kit. Listed platform compatibility: Silverback TAC-41. Body weights: five aluminum and four steel. Piston heads: one aluminum and one stainless steel. Included air brakes: 3.80mm short and long, designed for the stock TAC-41 cylinder head. Guide rings: front and rear POM. Spring guide: stainless steel.

GBB/TAC-41 Kraken configurations require separately purchased thicker air brakes according to the existing setup guidance. Short-stroke configuration may reduce joule output.

• Silverback TAC-41 Upgrade Parts: The Complete Guide

In-depth information :

The Scorpion piston is a unique concept where 6 weights form the body itself and as the piston itself is made up of these weights, it is also possible to extend the piston with additional weights (short stroke) which in turn reduces the volume of your cylinder and joule output but makes loading your TAC41 a lot shorter by each weight you add at the cost of some joule output which can be compensated with a stronger spring.

The piston comes with 9 body weights that are interchangeable with each other to perfectly set up your TAC41.

• 5x Aluminum anodized black body weights, each piece weighs: 3 Grams
• 4x Stainless steel polished body weights, each piece weighs: 11 Grams

Next to that, the piston comes with 2 head weight versions as well.

• 1x Aluminum anodized black head that weighs: 7 Grams
• 1x Stainless steel polished steel head that weighs: 17 Grams

The list for the 6 piece setups:
(The 5th stainless steel mid-section weight is for sale separate if you want to use the full heavy weight steel setups)

• TAC41 Scorpion 62g (1x head alu, 5x mid section alu)
• TAC41 Scorpion 76g (1x head alu, 1x mid section steel, 4x mid section alu)
• TAC41 Scorpion 80g (1x head steel, 5x mid section alu)
• TAC41 Scorpion 89g (1x head alu, 2x mid section steel, 3x mid section alu)
• TAC41 Scorpion 93g (1x head steel, 1x mid section steel, 4x mid section alu)
• TAC41 Scorpion 102g (1x head alu, 3x mid section steel, 2x mid section alu)
• TAC41 Scorpion 107g (1x head steel, 2x mid section steel, 3x mid section alu)
• TAC41 Scorpion 115g (1x head alu, 4x mid section steel, 1x mid section alu)
• TAC41 Scorpion 119g (1x head steel, 3x mid section steel, 2x mid section alu)
• TAC41 Scorpion 128g (1x head aluminum, 5x mid section steel)
• TAC41 Scorpion 133g (1x head steel, 4x mid section steel, 1x mid section alu)
• TAC41 Scorpion 145g (1x head steel, 5x mid section steel)
  This setup needs a 5th stainless steel mid-section, which is for sale separate.

Both air brakes are held with a nut underneath the cup against the piston head to keep it in place after you have adjusted it to your liking. The adjustable air brake is there to adjust the piston's speed at the very end of its movement to reduce the time of air escaping the cylinder and to reduces piston impact noise when it hits the cylinder head, a sorbo pad on your cylinder head can still be used with this piston.
