The all powerful Kraken Chamber designs has proven itself several times in the airsoft community and that's why we also created the Double Mute Cylinder Head for the SSG-10/VSR-10.
The head dampens the sound of the piston slamming against the cylinder head but also dampens the sound of the cylinder head slamming against the hopup because of Stalker's unique front bumper design.
This head is also included in the STALKER SSG-10/VSR-10 TDC Hopup Unit Kit, but we would like to offer it separately as well.

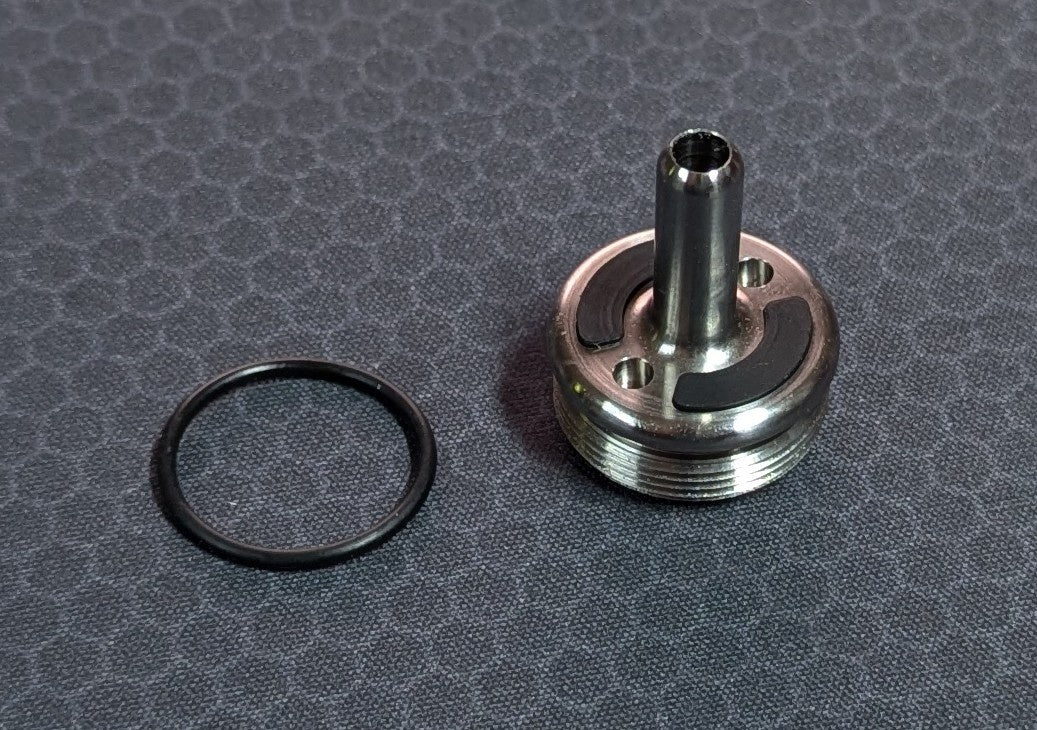

1x Stainless Steel Double Mute Cylinder Head
1x Piston Bumper Rubber
2x Front Bumper Rubbers
1x Sealing O-ring
Compatiability
Fits Novritsch SSG-10 Sniper Rifles
Fits VSR-10 Cylinder, Action Army, Maple leaf Etc, 23mm Thread
Fits all other Cylinder with 23mm Thread
Installation
Take the 3M tape from the two Bumper Rubbers and push them inside the cavities of the Cylinderhead.
Use some instant glue and put it inside the head where the round shaped bumperpad needs to sit (use the glue everywhere except in the middle nozzle piece, stay in the area where the bumperpad comes and use enough to cover the area where the bumerpad needs to be installed, bottom and sides of the pad needs glue so make sure you put some glue around and in the corner as well. Now install the bumper pad and let it dry for 10 minutes.
Install the seal O-ring on the cylinder head.
install the cylinderhead on your cylinder, you can use our STALKER TOOL (ST-TOOL-001) for this or use a hex tool or pliers.
